Semantic Router Dashboard

The Semantic Router Dashboard is a unified operator UI that brings together Configuration Management, an Interactive Playground, and Real-time Monitoring & Observability. It provides a single entry point across local development, Docker Compose, and Kubernetes deployments.

  • One place to view and edit configuration (with guardrails)
  • One tab to test prompts via your preferred UI (Open WebUI)
  • One tab to view metrics/dashboards (Grafana/Prometheus)
  • Single backend proxy that normalizes auth, CORS, and CSP across services

What’s inside​

Frontend (React + TypeScript + Vite)​

A modern SPA with:

  • React 18 + TypeScript + Vite
  • React Router for client-side routing
  • CSS Modules, dark/light theme with persistence
  • Collapsible sidebar to jump across sections
  • Topology visualization powered by React Flow

Pages:

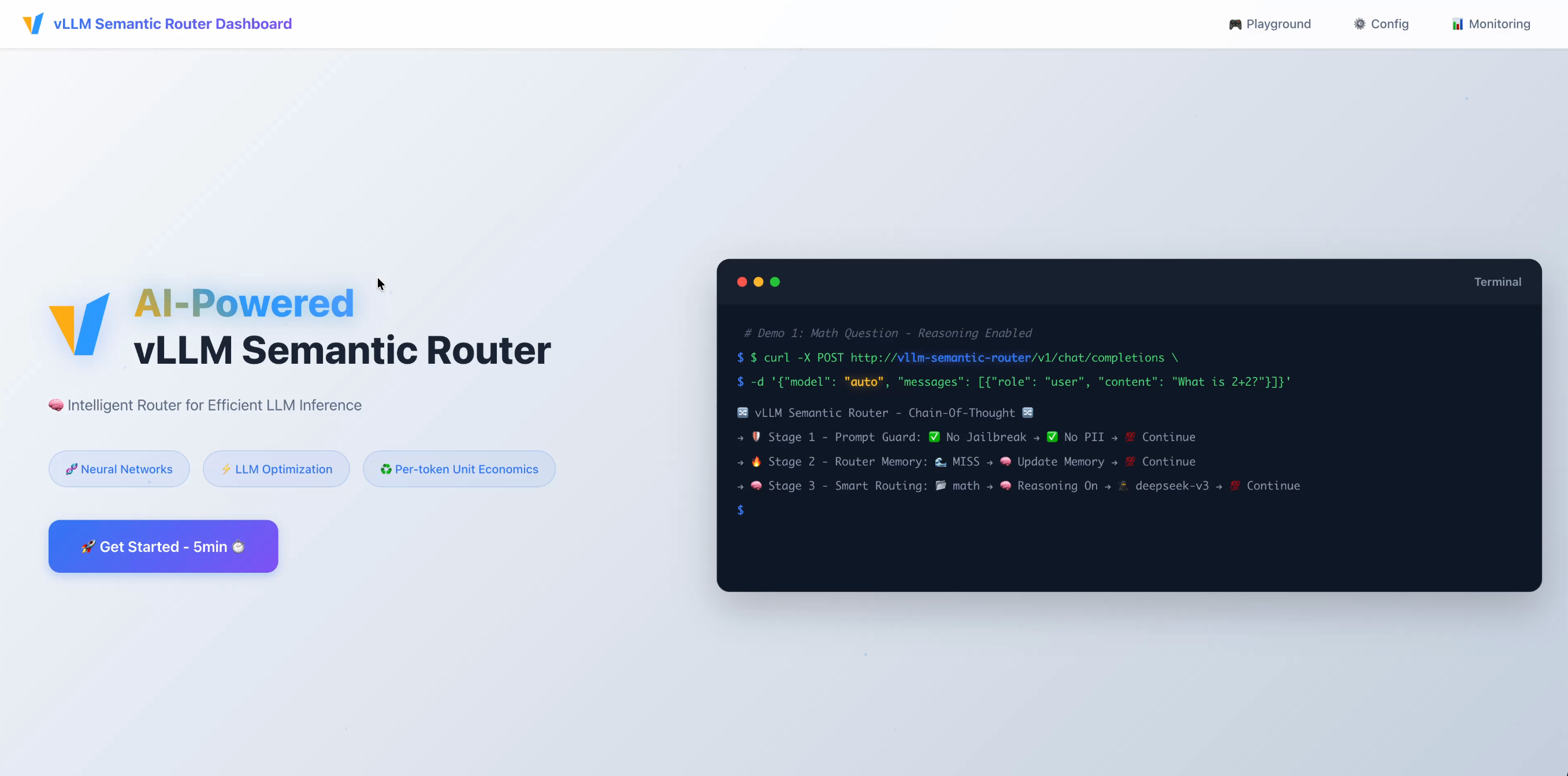

  • Landing: Intro and quick links

Dashboard Landing

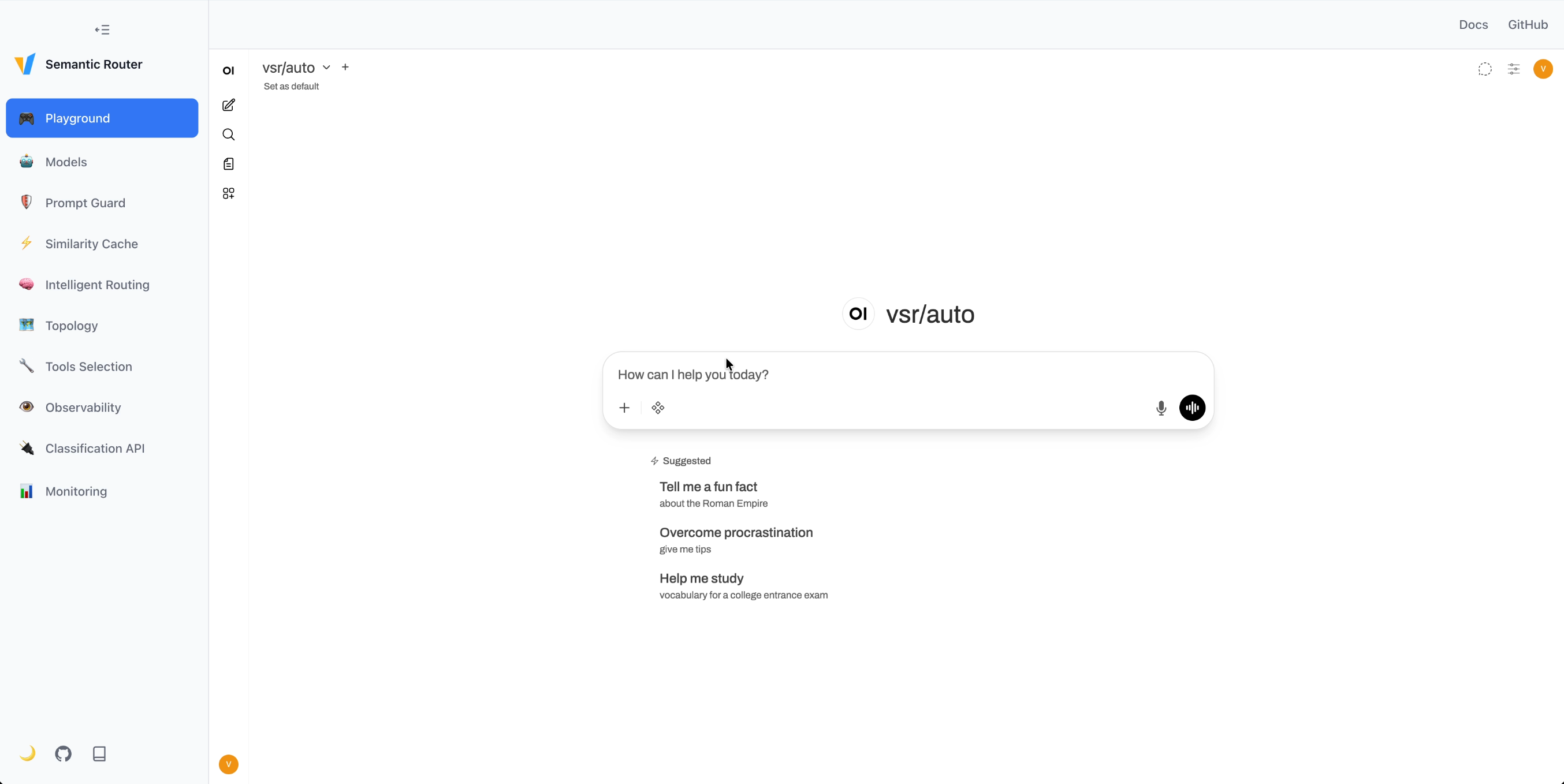

  • Playground: Embedded Open WebUI for quick testing

Open WebUI Embedded

  • Config: Real-time configuration viewer/editor with structured panels and raw view

Configuration Page

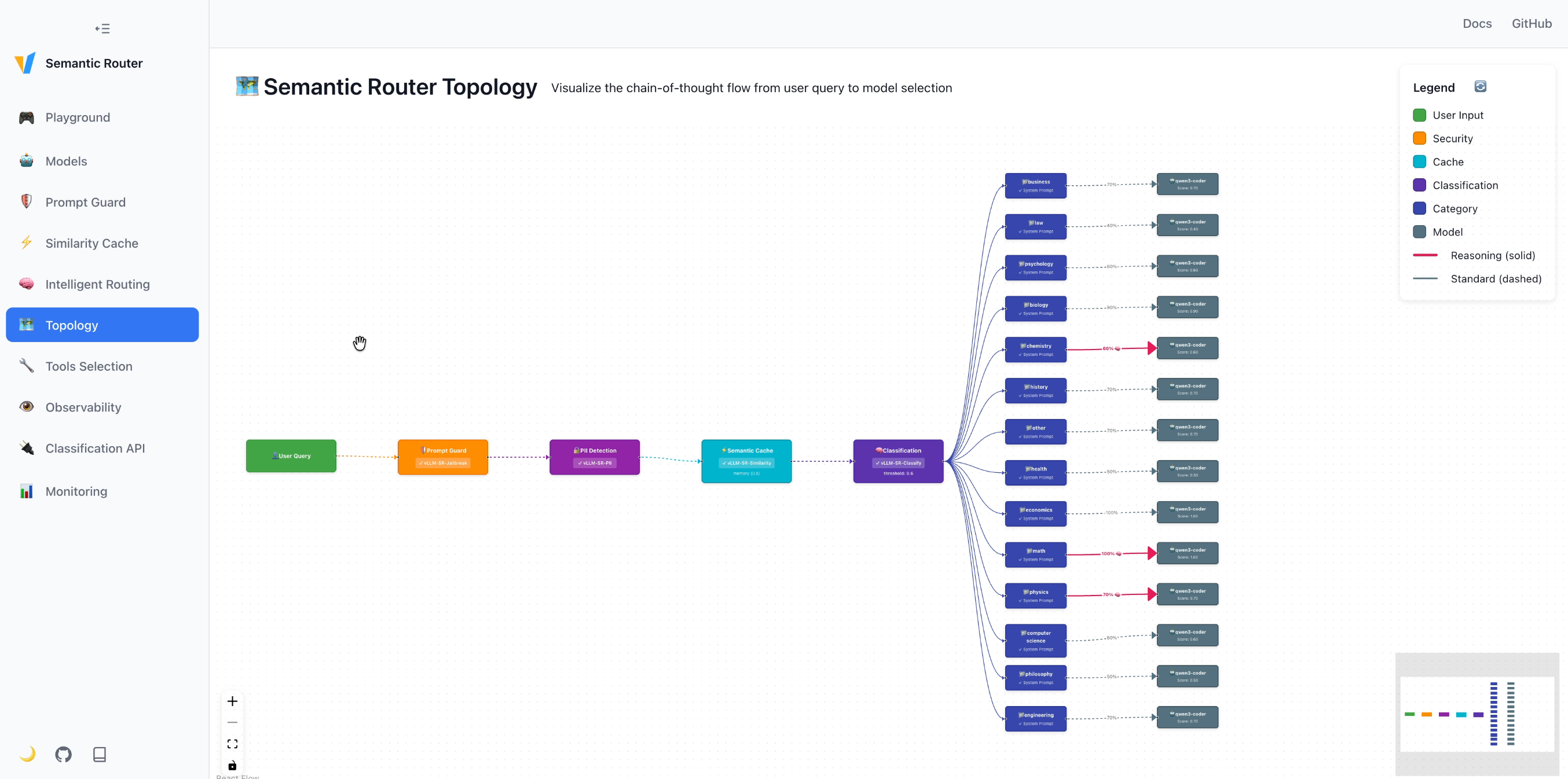

  • Topology: Visual flow from user request to model selection

Topology View

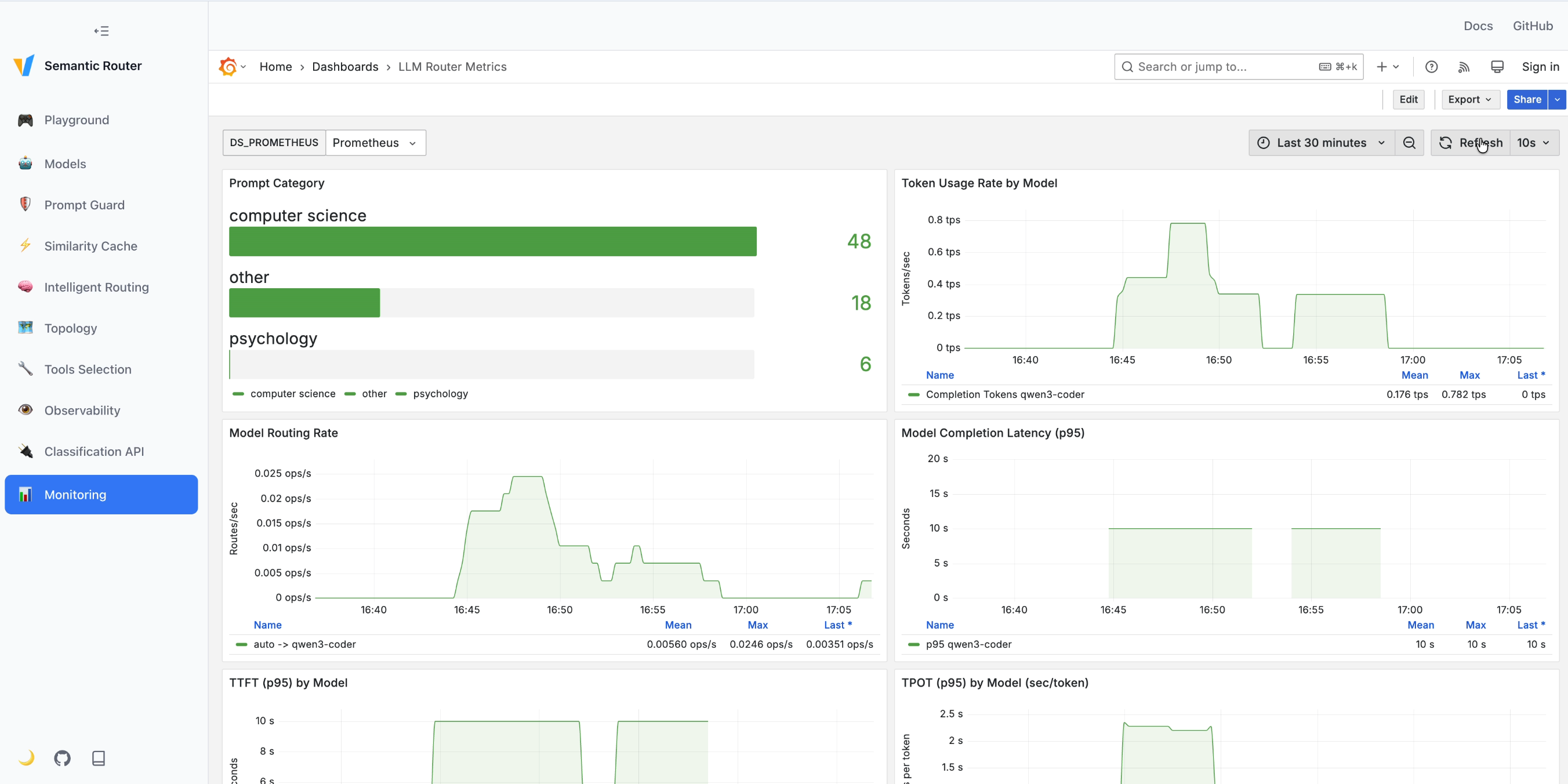

  • Monitoring: Embedded Grafana dashboard

Grafana Embedded

Backend (Go HTTP Server)​

  • Serves the frontend build (SPA routing)
  • Reverse proxies upstream services with header normalization for iframe embedding
  • Exposes a small set of dashboard APIs for config and tools database

Key routes:

  • Health: GET /healthz
  • Config (read): GET /api/router/config/all (reads YAML, returns JSON)
  • Config (write): POST /api/router/config/update (writes YAML back to file)
  • Tools DB: GET /api/tools-db (serves tools_db.json next to the config)
  • Router API: GET/POST /api/router/* (Authorization header forwarded)
  • Grafana (embed): GET /embedded/grafana/*
  • Prometheus (embed): GET /embedded/prometheus/*
  • Open WebUI (embed): GET /embedded/openwebui/*
  • Router metrics passthrough: GET /metrics/router → redirects to router metrics

The proxy strips/overrides X-Frame-Options and adjusts Content-Security-Policy to allow frame-ancestors 'self', enabling safe embedding under the dashboard origin.

Environment variables​

Supply upstream targets and runtime settings via env vars (defaults in parentheses):

  • DASHBOARD_PORT (8700)
  • TARGET_GRAFANA_URL
  • TARGET_PROMETHEUS_URL
  • TARGET_ROUTER_API_URL (http://localhost:8080)
  • TARGET_ROUTER_METRICS_URL (http://localhost:9190/metrics)
  • TARGET_OPENWEBUI_URL (optional)
  • ROUTER_CONFIG_PATH (../../config/config.yaml)
  • DASHBOARD_STATIC_DIR (../frontend)

Note: The config update API writes to ROUTER_CONFIG_PATH. In containers/Kubernetes, this path must be writable (not a read-only ConfigMap). Mount a writable volume if you need runtime edits to persist.

Quick start​

The dashboard is integrated into the main Compose file.

# From the repository root
make docker-compose-up

Then open in browser:
